German KM Receiver Transmitter 'Ha 5k 39b'

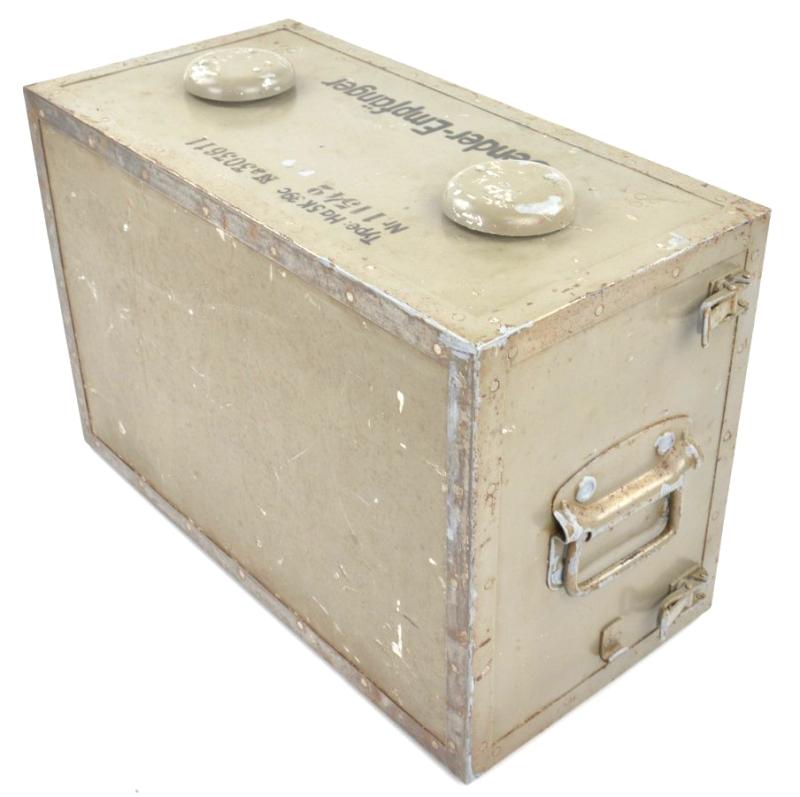

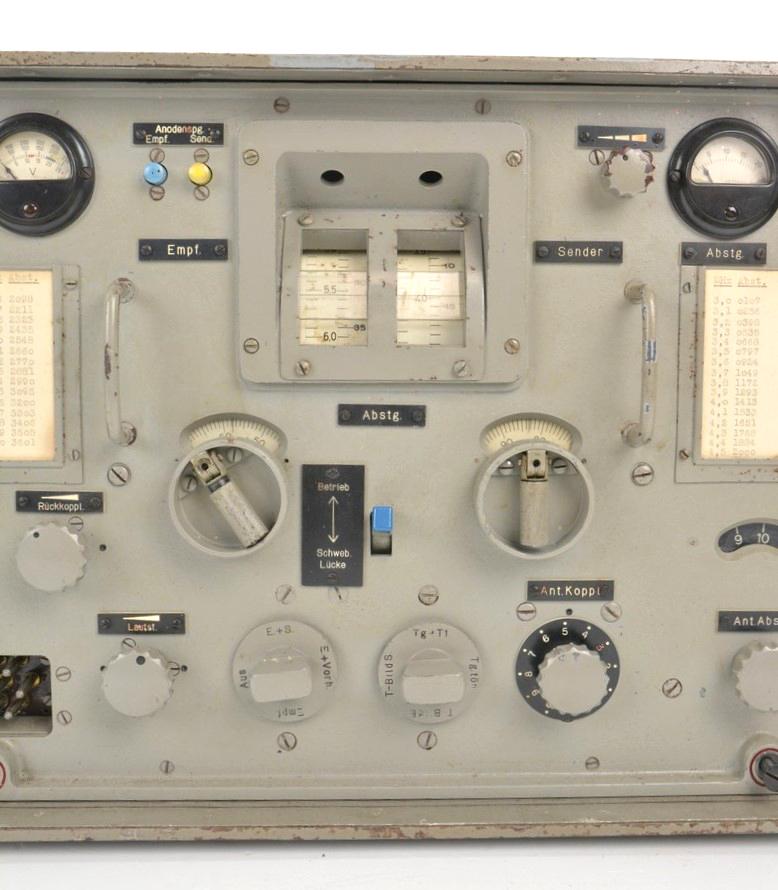

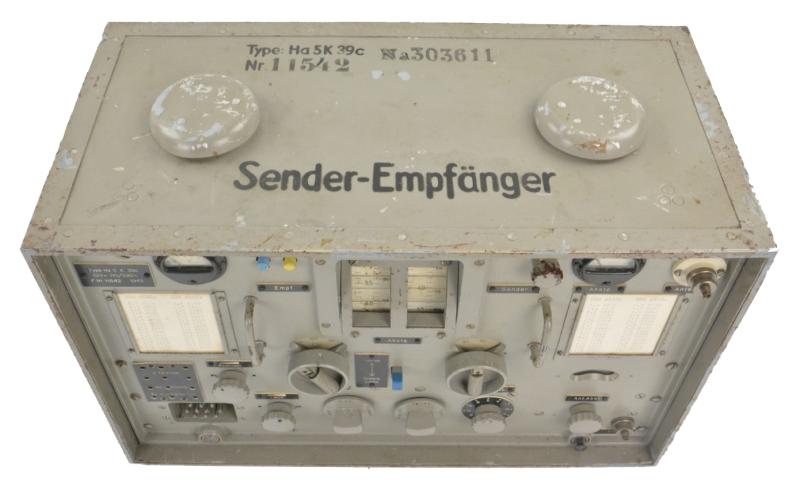

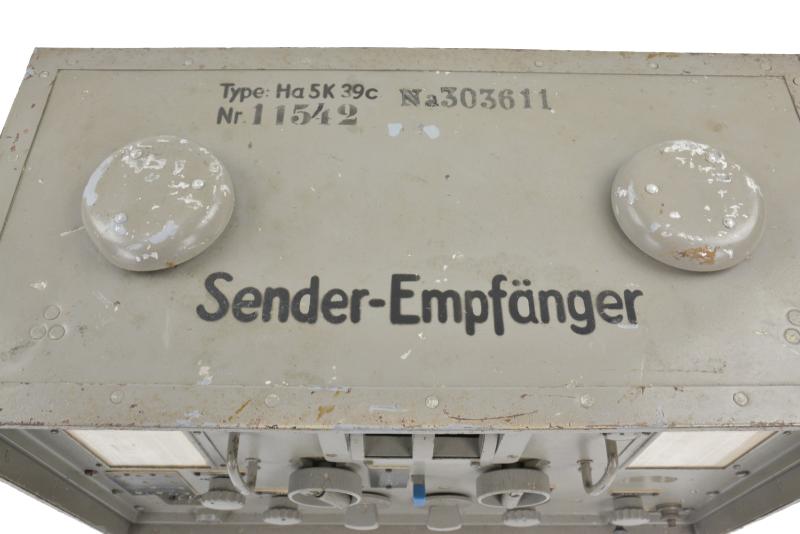

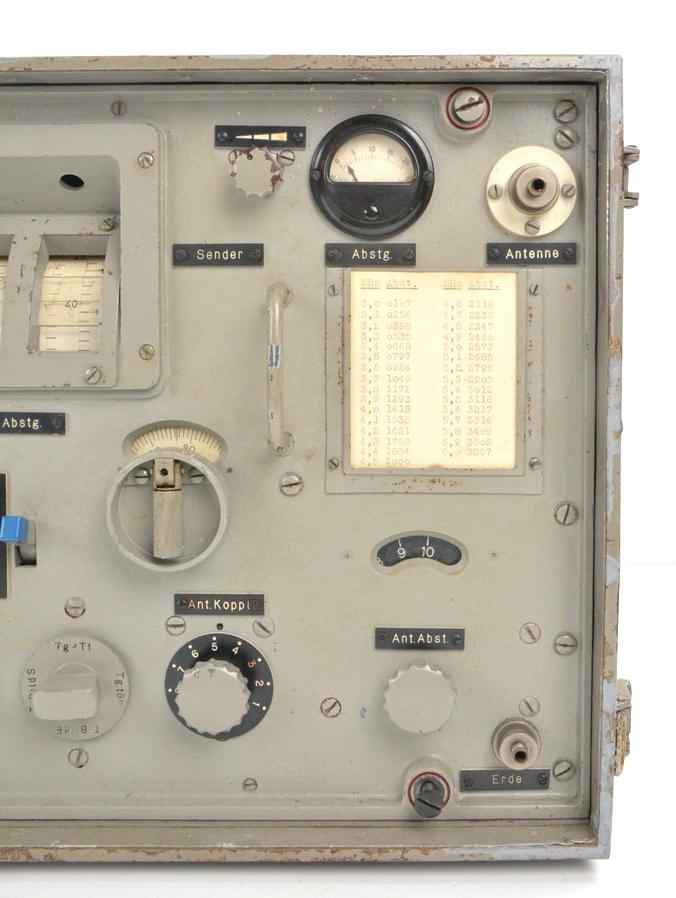

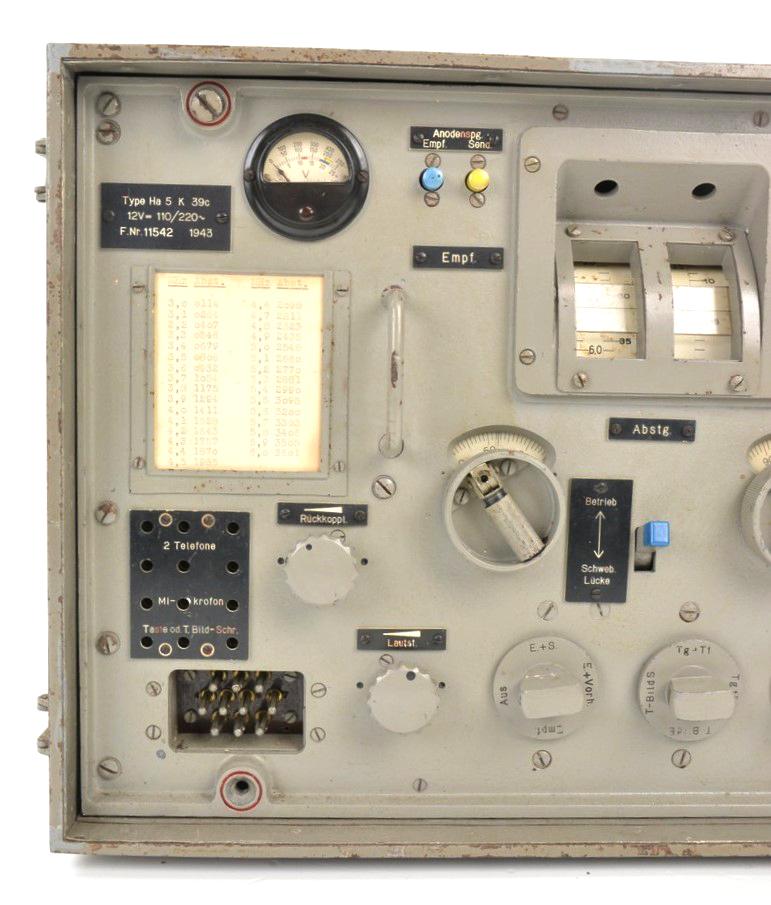

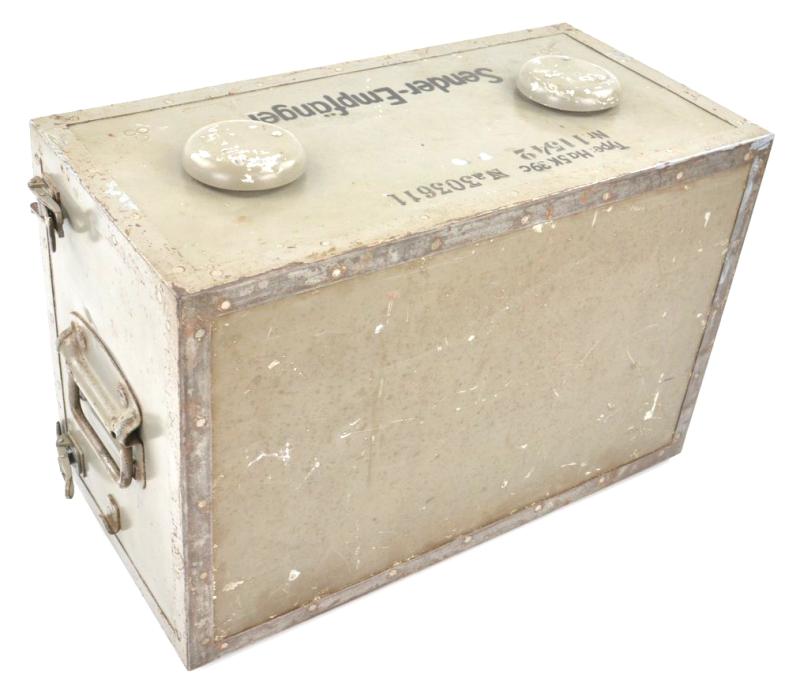

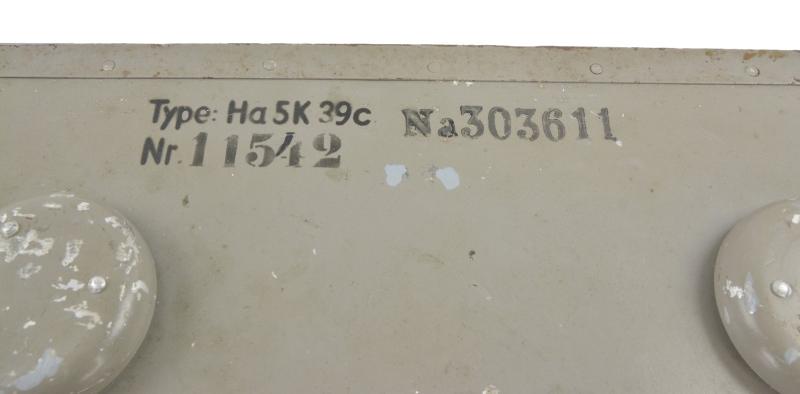

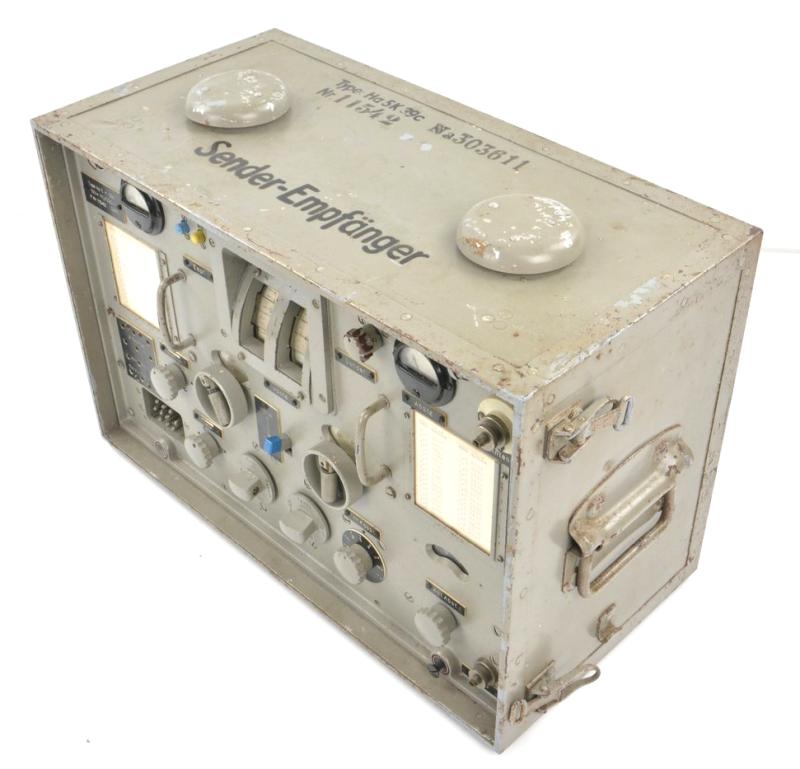

In a very good condition a hard to find German Kriegsmarine radio receiver transmitter type 'Ha 5k 39b' complete in it's original paint!
The Hagenuk made transmitter comes in a 5K (5Watt) output.
These Marine set was used in Naval Installations, harbour control and also inside German U-boats!
This is a 5 Watt transceiver for the frequency band 2.0 - 5.0 MHz. Modulation is CW or AM.

Technical data transmitter:
Output power phone, A3:1.5 Watt
Output power CW, A1:5 Watt
Frequency range: 2 MHz - 5 MHz
Keying:Fangitternøkling i oscillator and PA.
Tube, oscillator: RV12P2000
Tube, PA: RL12P10
Modulator tube: RV12P2000
Regulator tube:GR150A

Technical data receiver:

Type: 3 tube TRF-Receiver.
Tube 1: HF input amplifier with two resonant circuit
Tube 2: Regenerative detector.
Tube 3: Audio amplifier.
Frequency range: 2 MHz - 5 MHz
Sensitivity A1 (CW): 4 uV
Sensitivity A3 (AM): 40 uV
Audio range: 300 - 3000 Hz.

A very stunning set for Kriegsmarine display!!

Because of the weight, shippingcost is on request!

Code: 68529
